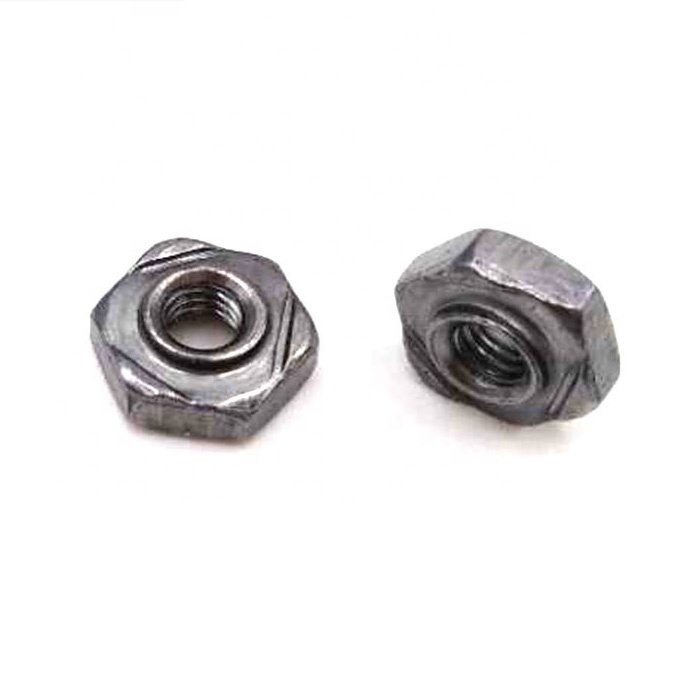

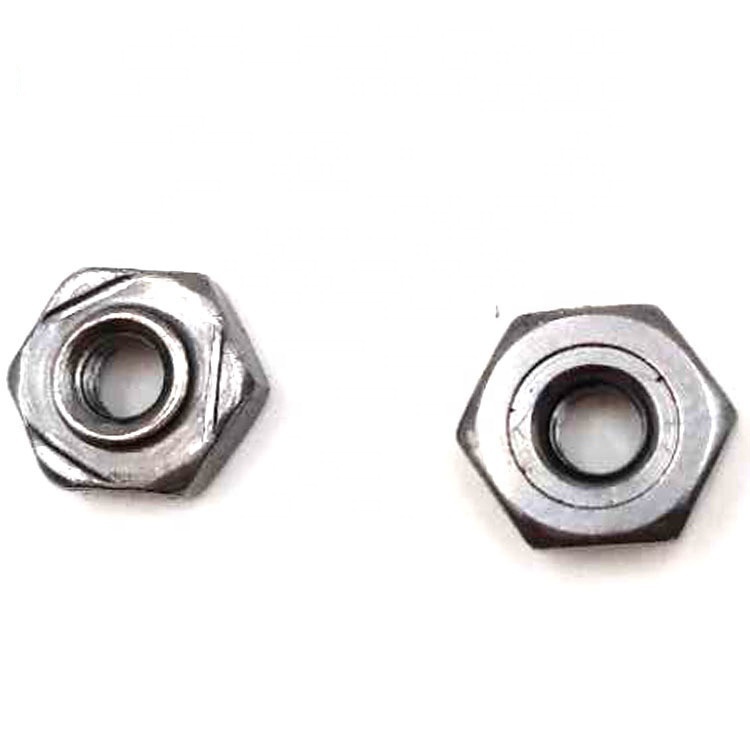

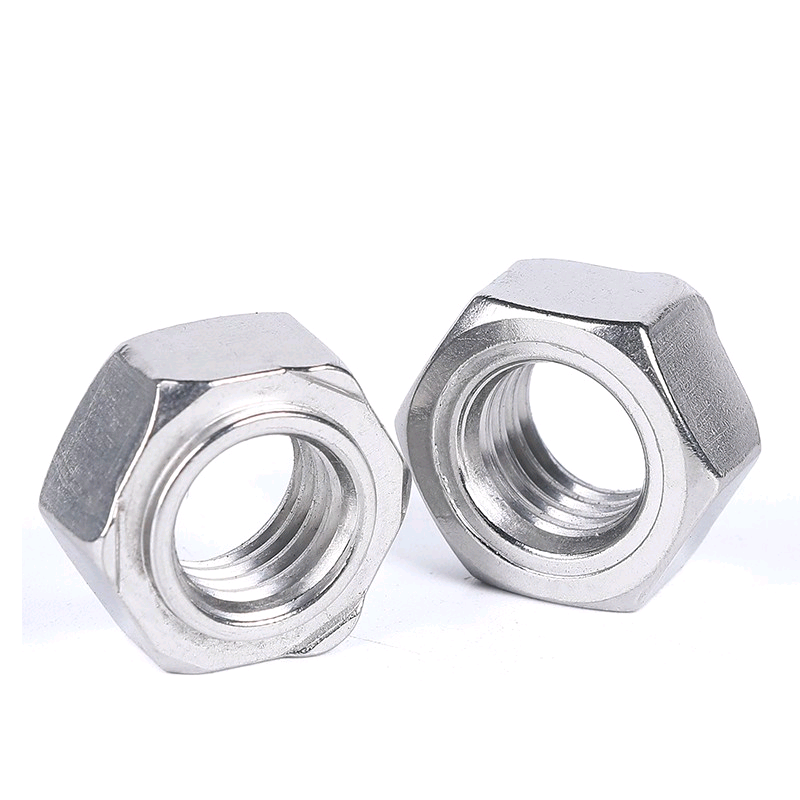

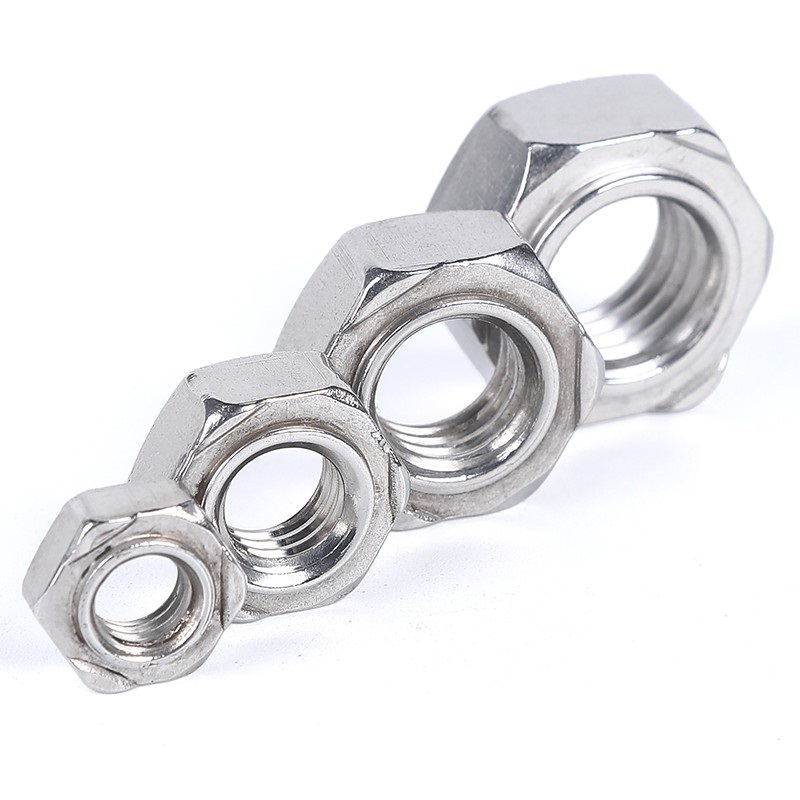

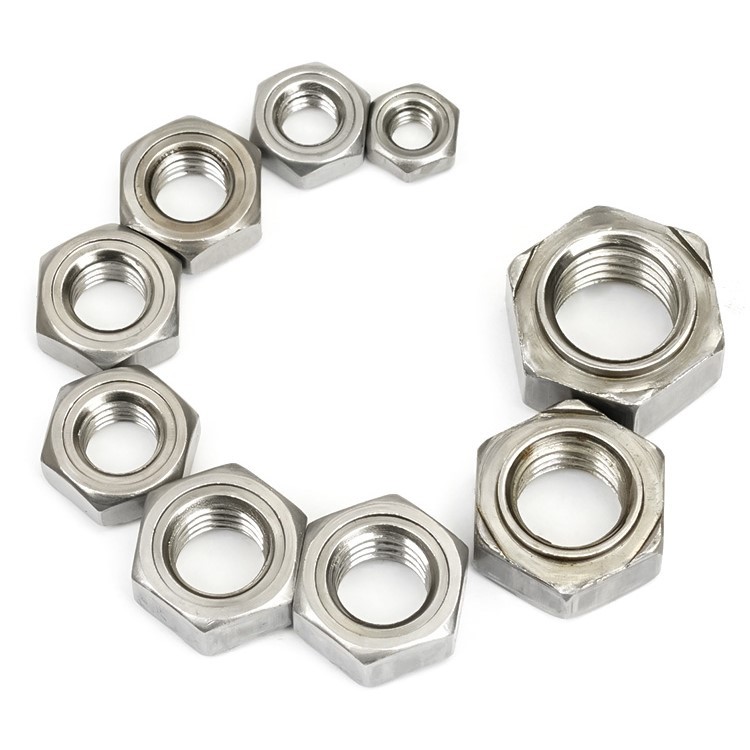

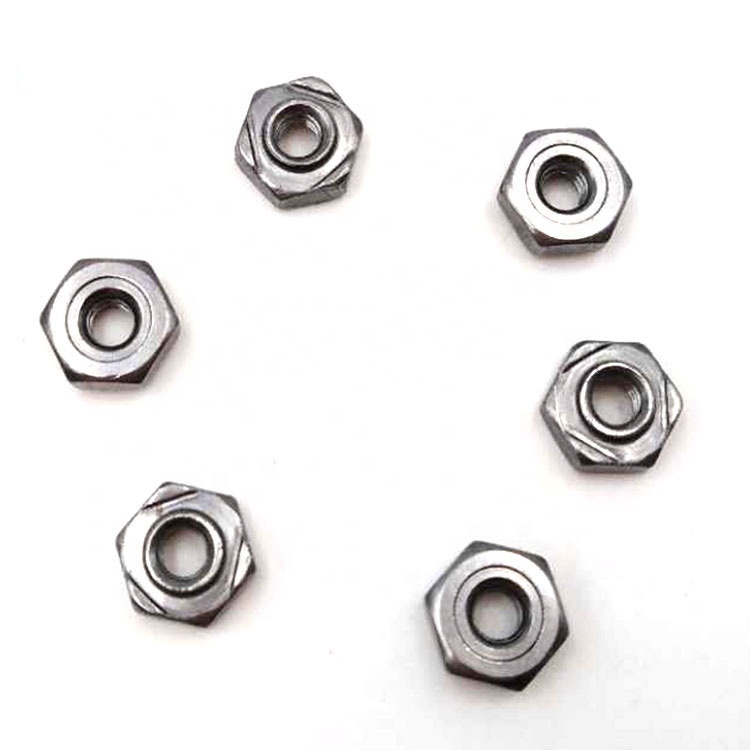

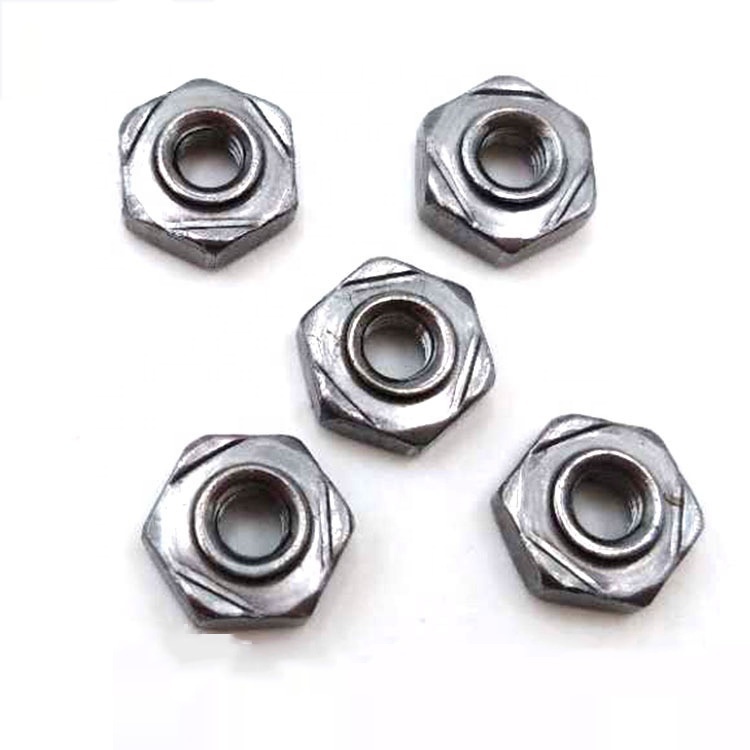

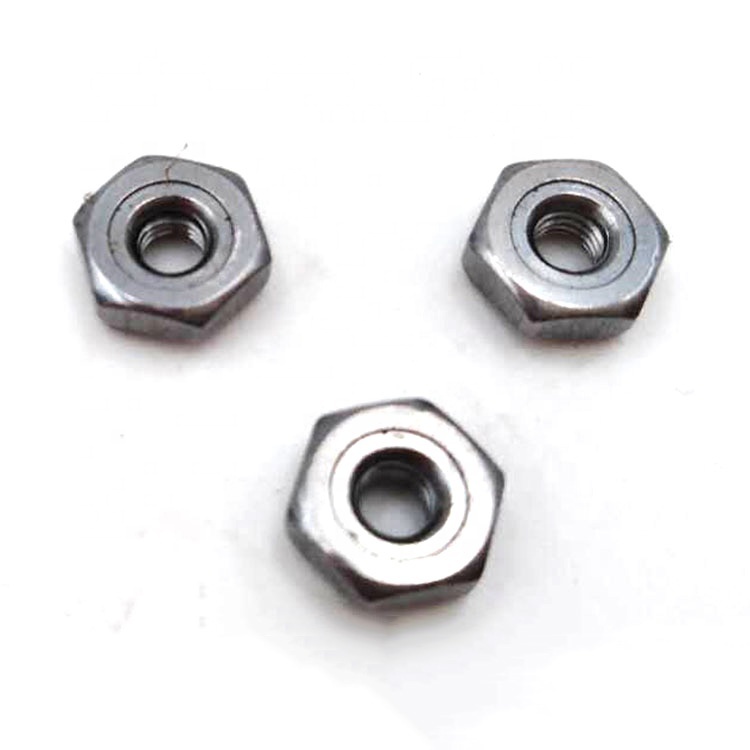

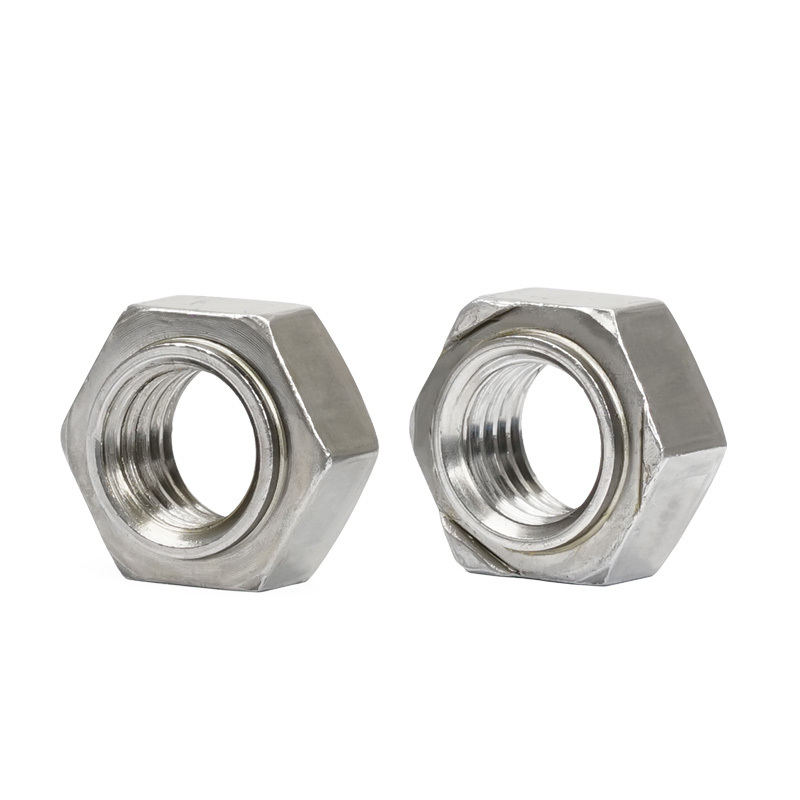

Stainless steel hexagon welding bolt
Key words：
Stainless steel hexagon welding bolt
Email us：wang15188881444@gmail.com
Related Products
Product Details
Product Photos and Information
| Name | Hex Welding Nuts | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO UNC BSW JIS etc. | Strength level | 4 5 8 10 12 A2-70 A4-70 A4-80 etc. |
| Size | M3-M36 | Surface finish | ZP\HDG\BLACK\Dacromet etc. |
| Length | 1-32 | Samples | Available |
|
|
Product Standards

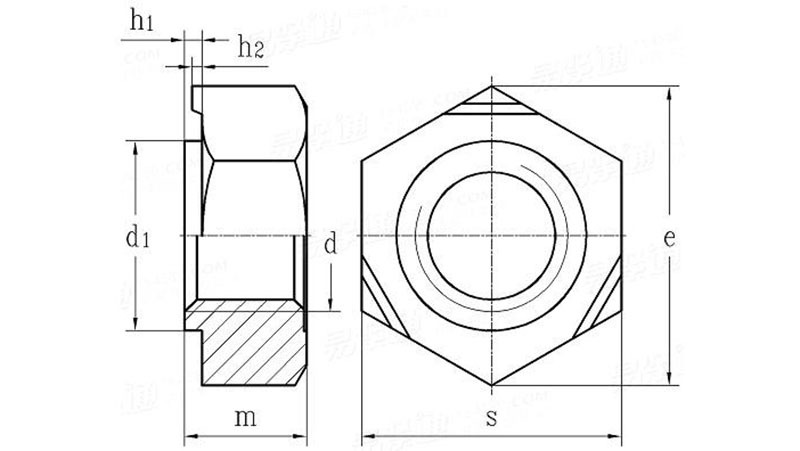

Hexagon Weld Nuts DIN 929
| Thread specification | M3 | M4 | M5 | M6 | (M7) | M8 | M10 | 7/16 UNF-2B |
M12 | (M14) | M16 | |||
| d | ||||||||||||||
| P | pitch | coarse teeth | 0.5 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | / | 1.75 | 2 | 2 | |
| fine teeth 1 | / | / | / | / | / | 1 | 1.25 | / | 1.5 | 1.5 | 1.5 | |||
| fine teeth 2 | / | / | / | / | / | / | 1 | 20 | 1.25 | / | / | |||
| h 1 | maximum value | 0.55 | 0.65 | 0.7 | 0.75 | 0.8 | 0.9 | 1.15 | 1.4 | 1.4 | 1.8 | 1.8 | ||
| minimum | 0.45 | 0.55 | 0.6 | 0.6 | 0.65 | 0.75 | 0.95 | 1.2 | 1.2 | 1.6 | 1.6 | |||
| h 2 | maximum value | 0.25 | 0.35 | 0.4 | 0.4 | 0.5 | 0.5 | 0.65 | 0.8 | 0.8 | 1 | 1 | ||
| minimum | 0.15 | 0.25 | 0.3 | 0.3 | 0.35 | 0.35 | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 | |||
| m | maximum value | 3 | 3.5 | 4 | 5 | 5.5 | 6.5 | 8 | 10 | 10 | 11 | 13 | ||
| minimum | 2.75 | 3.2 | 3.7 | 4.7 | 5.2 | 6.14 | 7.64 | 9.64 | 9.64 | 10.57 | 12.57 | |||
| s | maximum value | 7.5 | 9 | 10 | 11 | 12 | 14 | 17 | 19 | 19 | twenty two | twenty four | ||
| minimum | 7.28 | 8.78 | 9.78 | 10.73 | 11.73 | 13.73 | 16.73 | 18.67 | 18.67 | 21.67 | 23.67 | |||
| d 1 | Nominal | 4.5 | 6 | 7 | 8 | 9 | 10.5 | 12.5 | 13.5 | 14.8 | 16.8 | 18.8 | ||
| maximum value | 4.47 | 5.97 | 6.96 | 7.96 | 8.96 | 10.45 | 12.45 | 13.45 | 14.75 | 16.75 | 18.735 | |||
| minimum | 4.395 | 5.895 | 6.87 | 7.87 | 8.87 | 10.34 | 12.34 | 13.34 | 14.64 | 16.64 | 18.605 | |||
| Thousand pieces (steel)≈kg | 0.78 | 1.13 | 1.73 | 2.5 | 3.24 | 5.27 | 9.58 | 14 | 13.7 | 21.3 | 28.5 | |||
