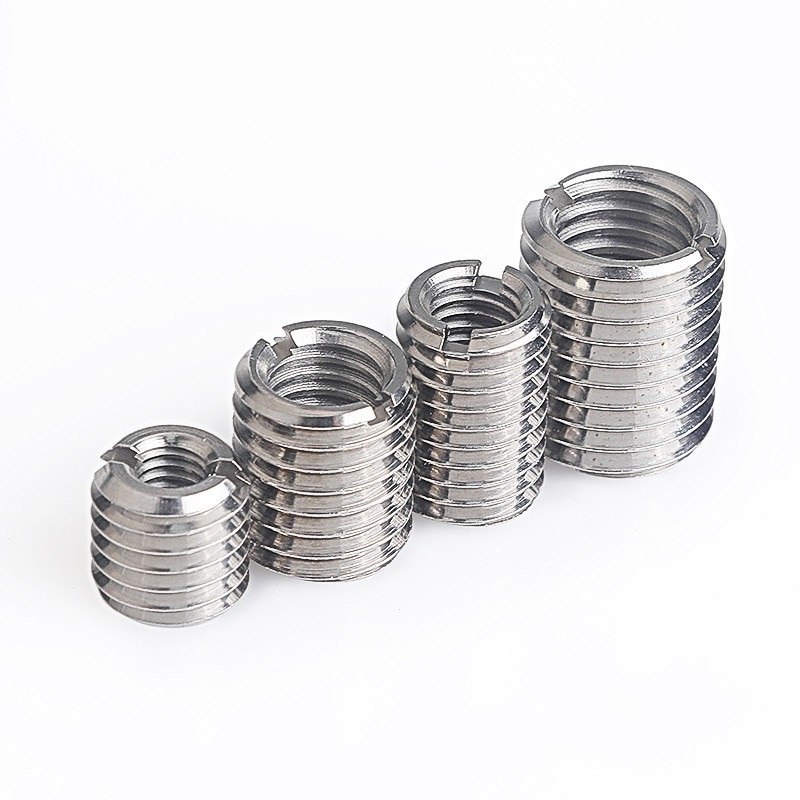

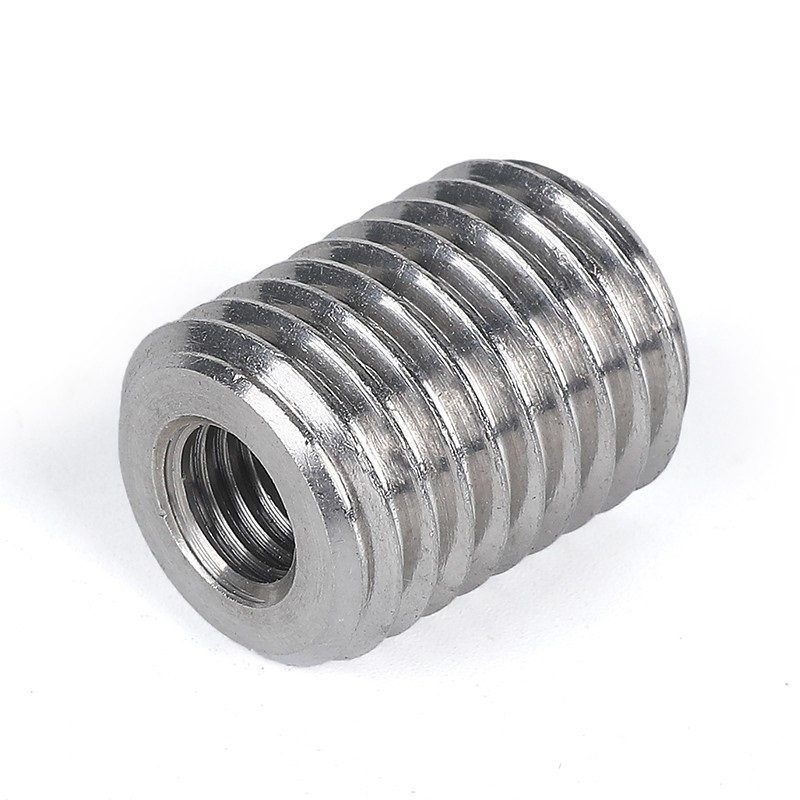

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 Insert Nuts
Key words：
High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated Insert Nuts
Email us：wang15188881444@gmail.com
Related Products
Product Details

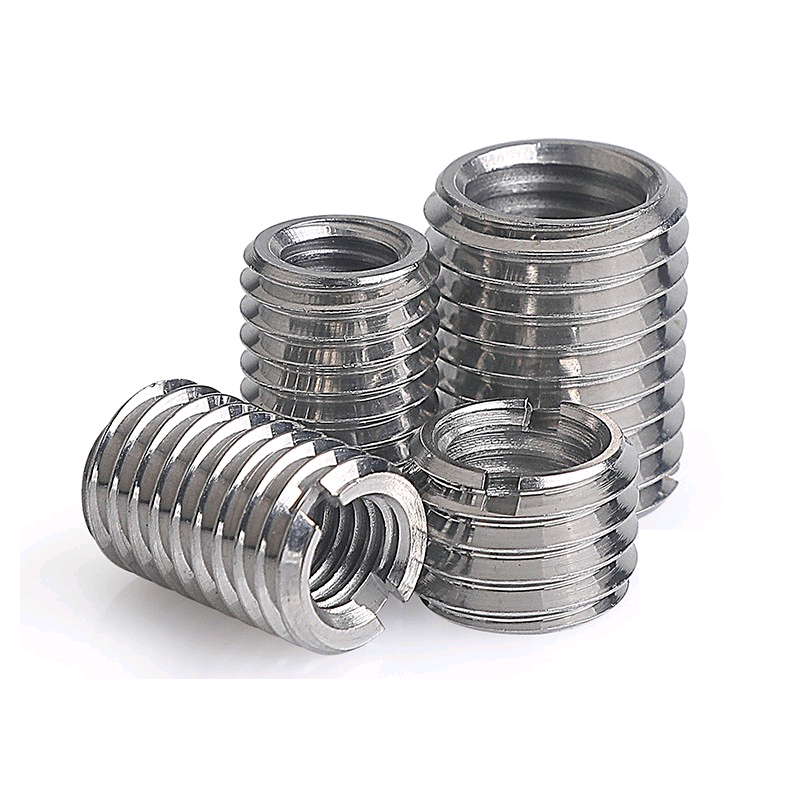

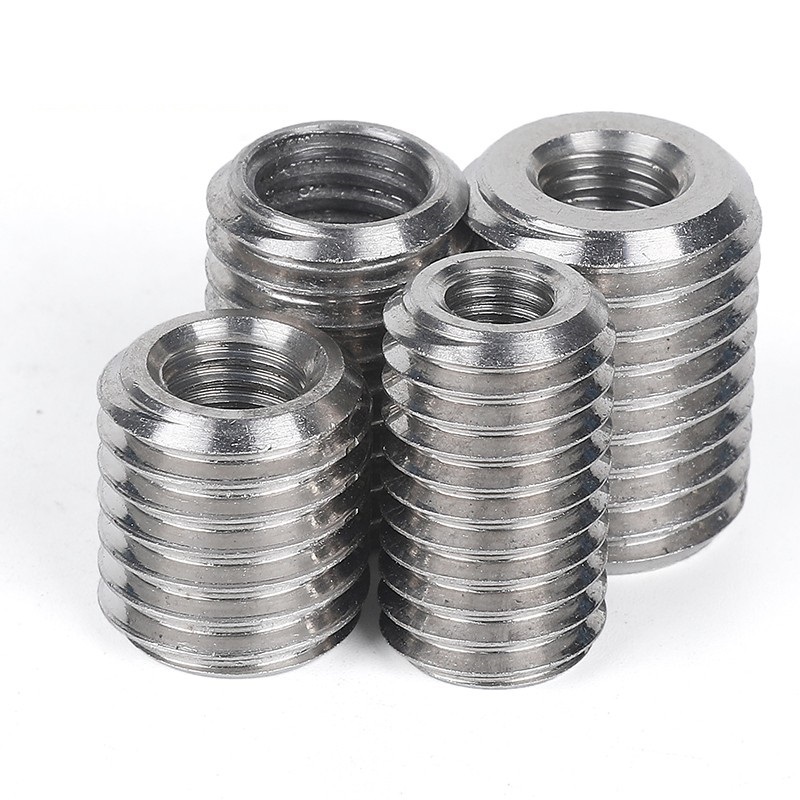

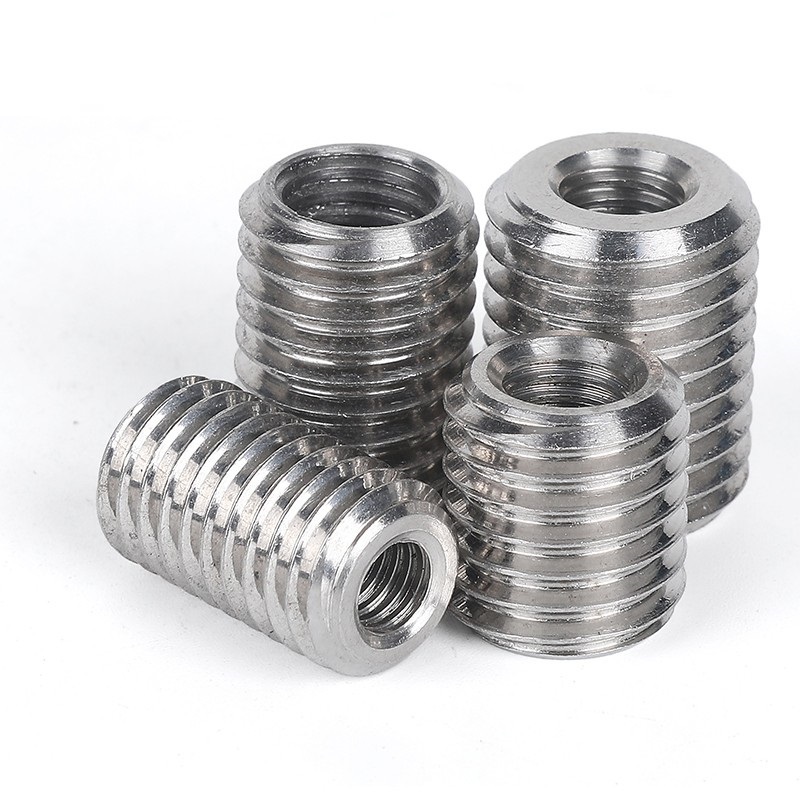

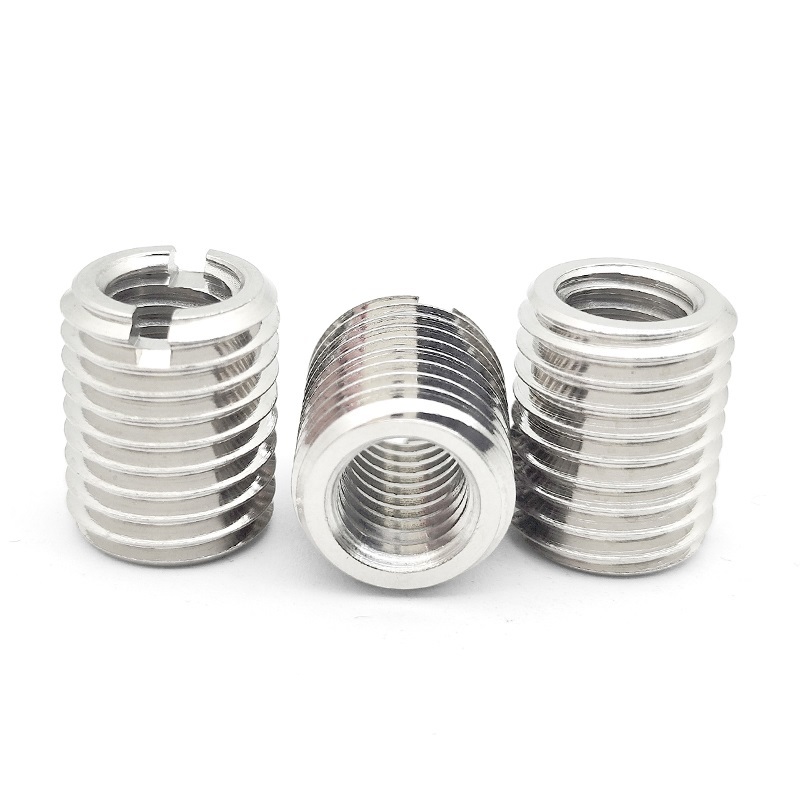

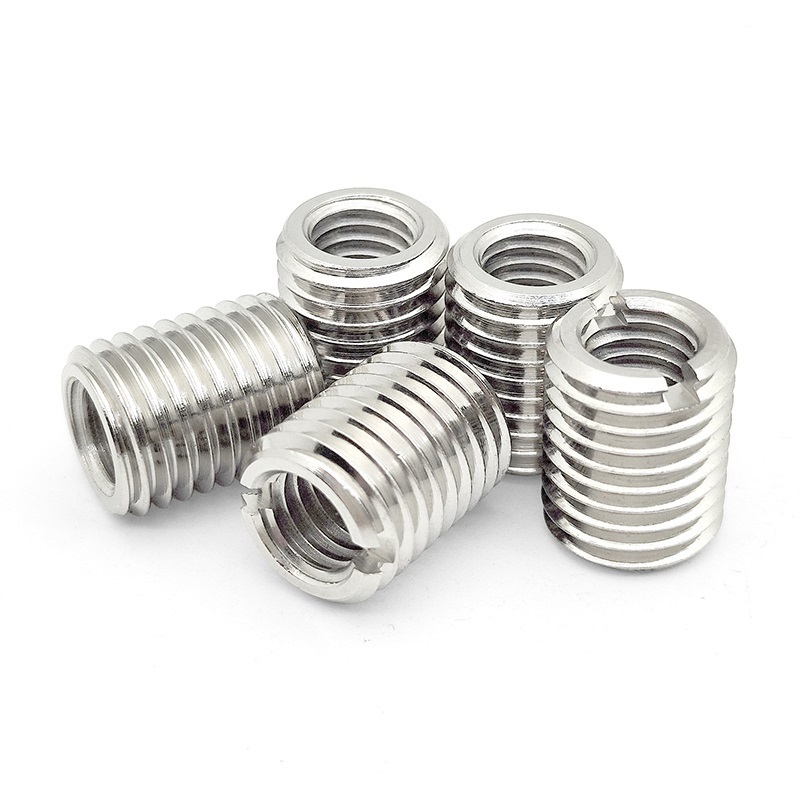

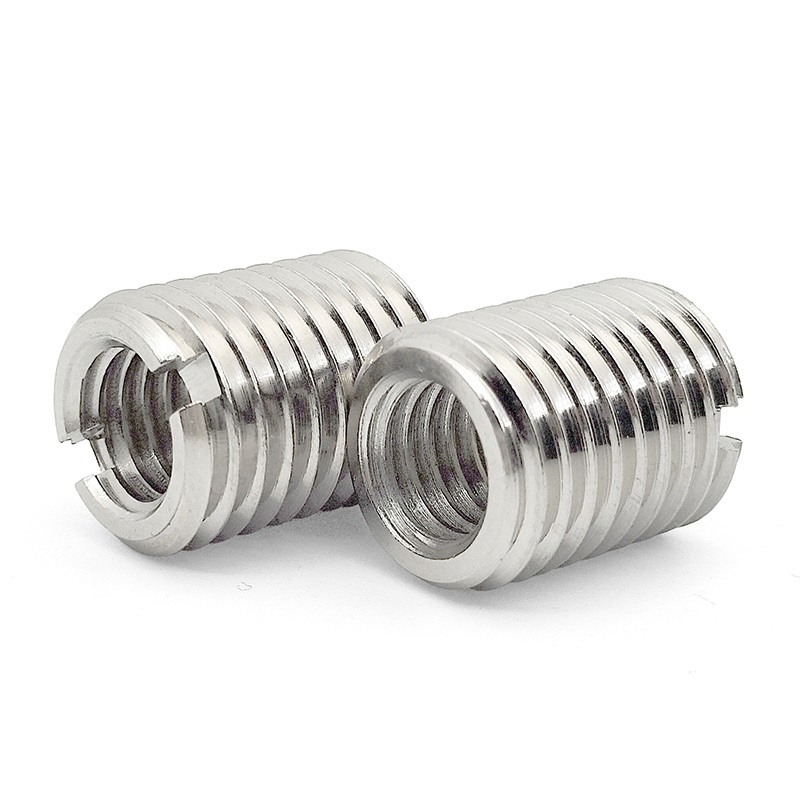

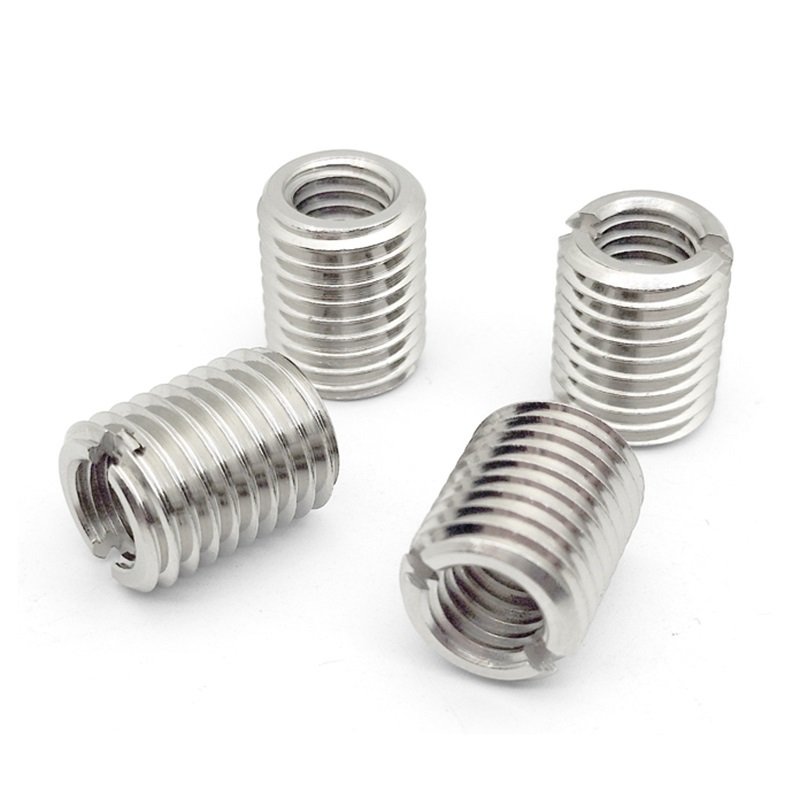

Product Photos and Information
| Name | Insert Nuts | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO UNC BSW JIS etc. | Strength level | 4 5 etc. |
| Size | M3-M12 | Surface finish | ZP\BLACK etc. |
| Length | 10-32 | Samples | Available |
|
|
Product Standards

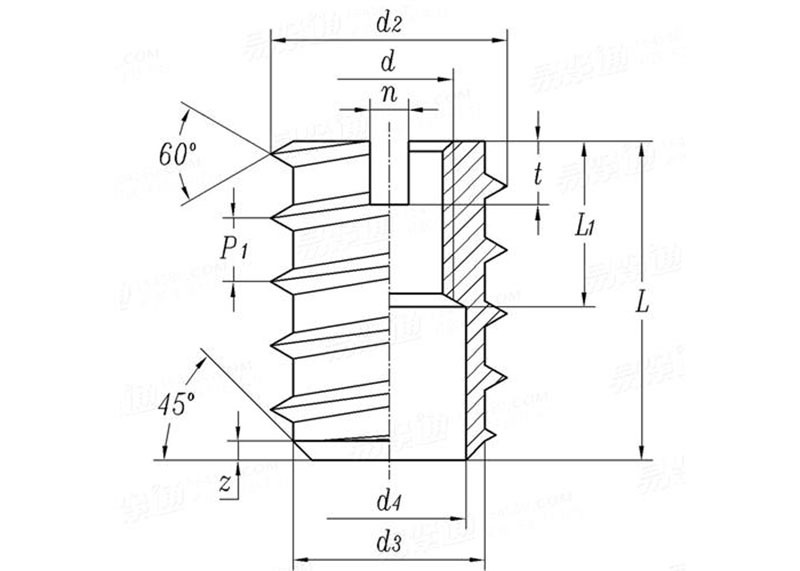

Slotted threaded inserts (threaded plugs) DIN 7965
| Thread specification | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | ||
| d | |||||||||||
| d 2 | 6 | 8 | 10 | 12 | 16 | 18.5 | twenty two | 25 | 29 | ||
| d 3 | 4.5 | 5.5 | 7.5 | 9.5 | 12.5 | 15 | 18 | 20.5 | twenty four | ||
| d 4 | 3.5 | 4.5 | 6 | 7.5 | 10 | 12 | 15 | 17.5 | twenty one | ||
| P1 _ | 2 | 2.5 | 3.5 | 4 | 5 | 5 | 5 | 5 | 5 | ||
| L 1 | 5 | 6 | 7 | 9 | 11 | 13 | 16 | 16 | 20 | ||
| n | 1 | 1.2 | 1.6 | 2 | 2.5 | 3 | 3 | 4 | 5 | ||
| t | 2 | 2 | 3 | 3 | 4 | 5 | 5 | 6 | 6 | ||
| With | 0.6 | 0.6 | 0.8 | 1 | 1 | 1.6 | 1.6 | 1.6 | 1.6 | ||
