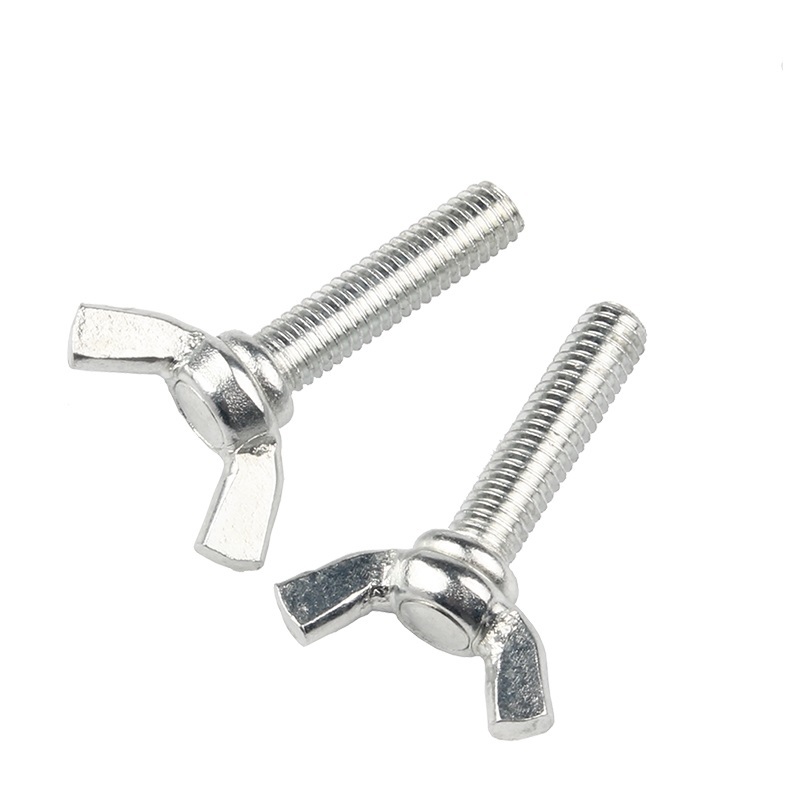

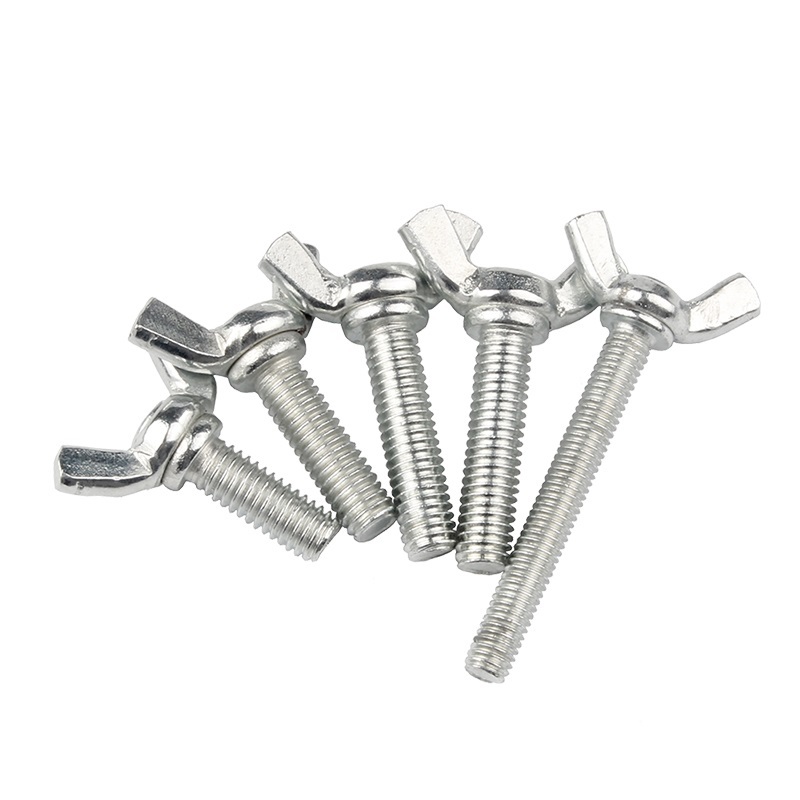

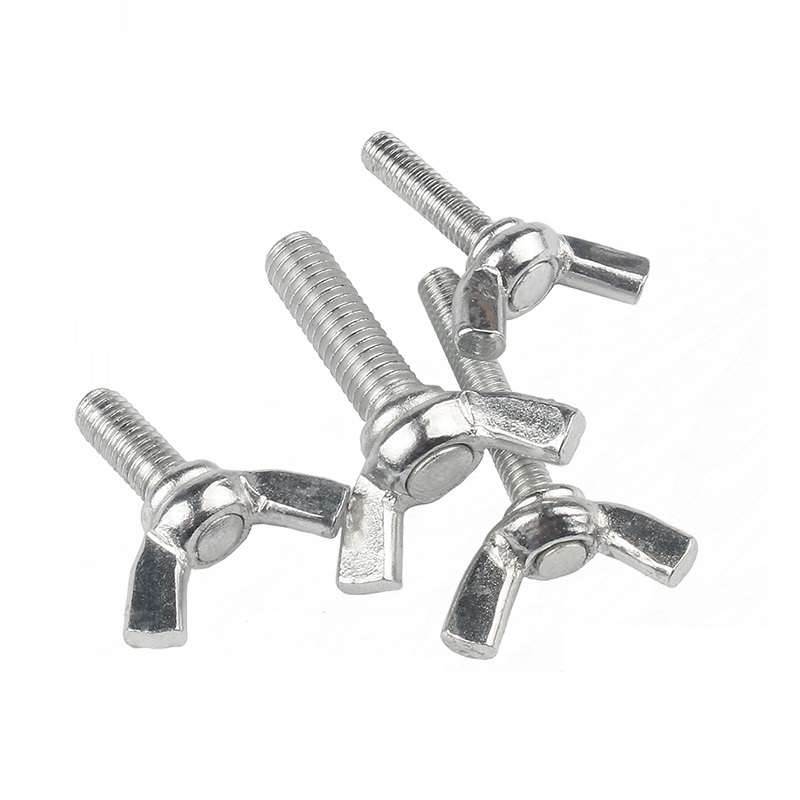

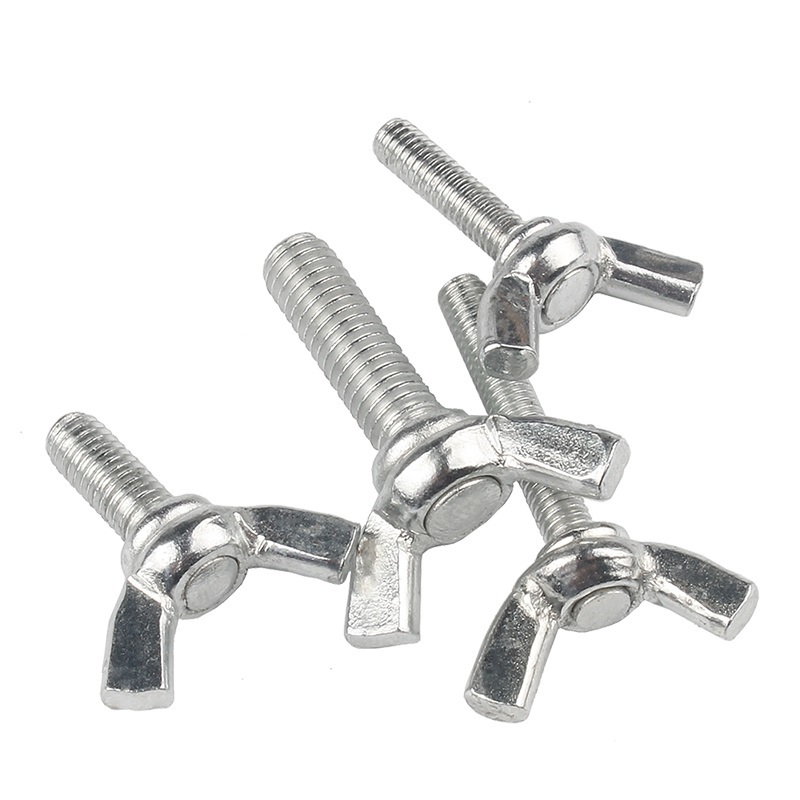

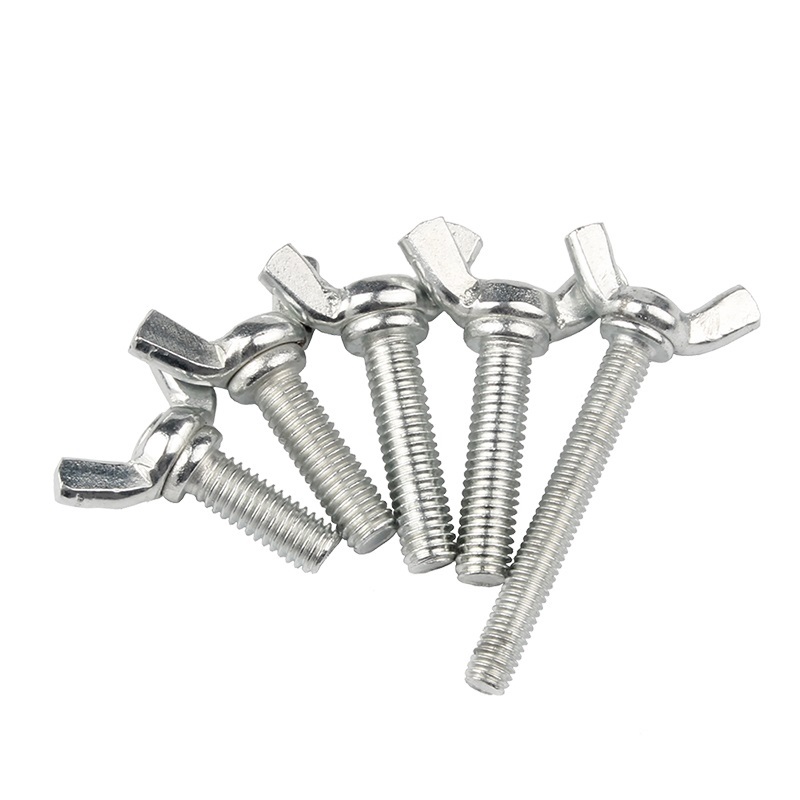

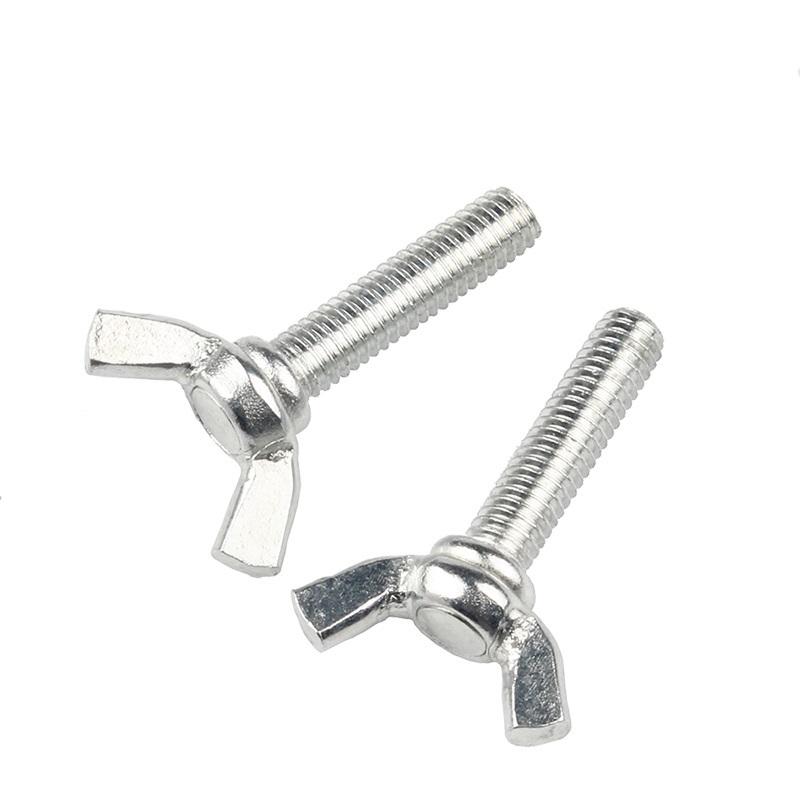

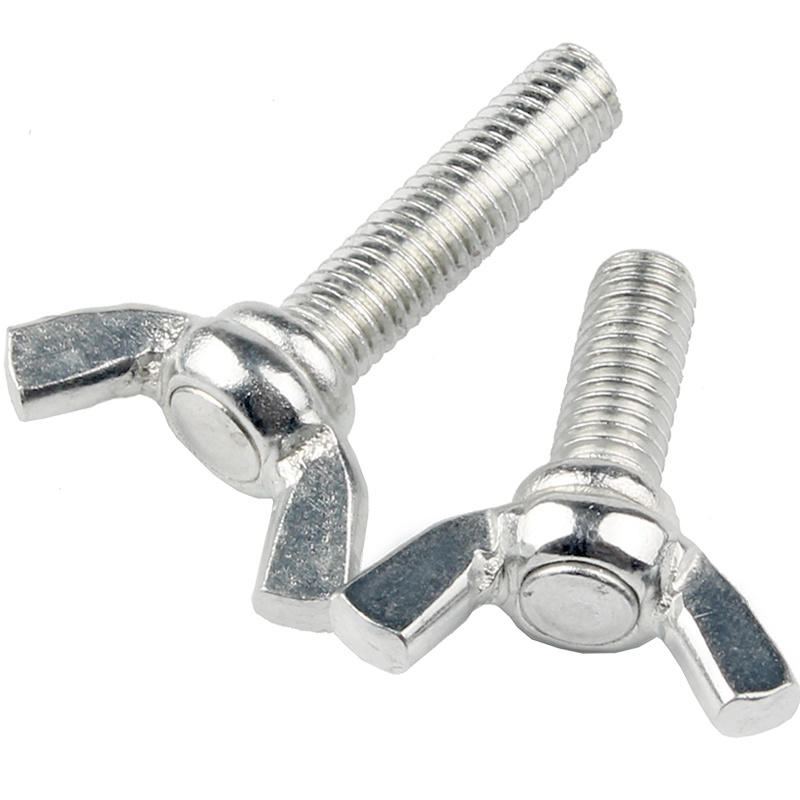

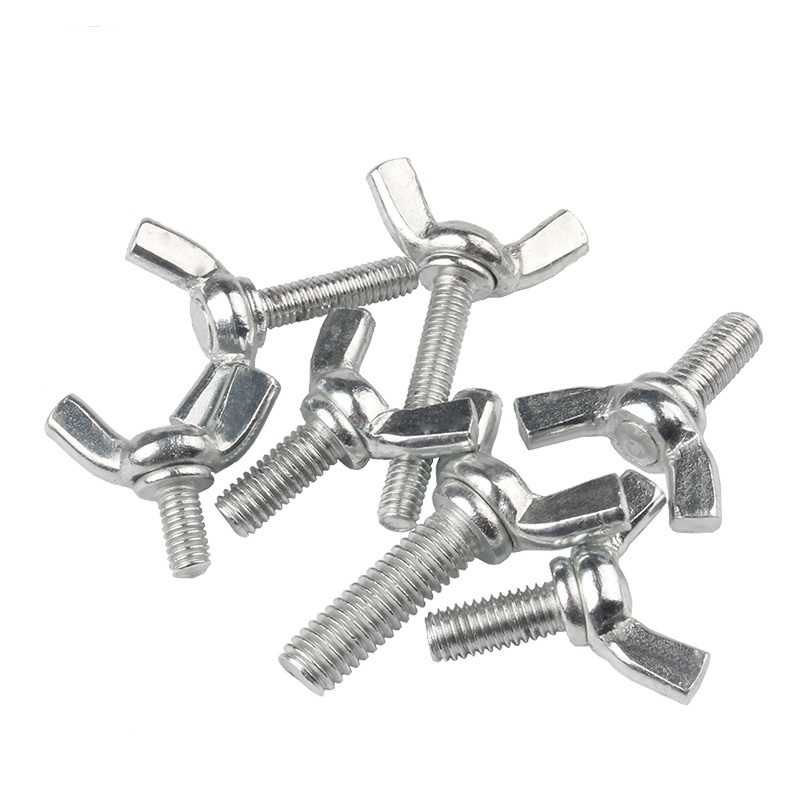

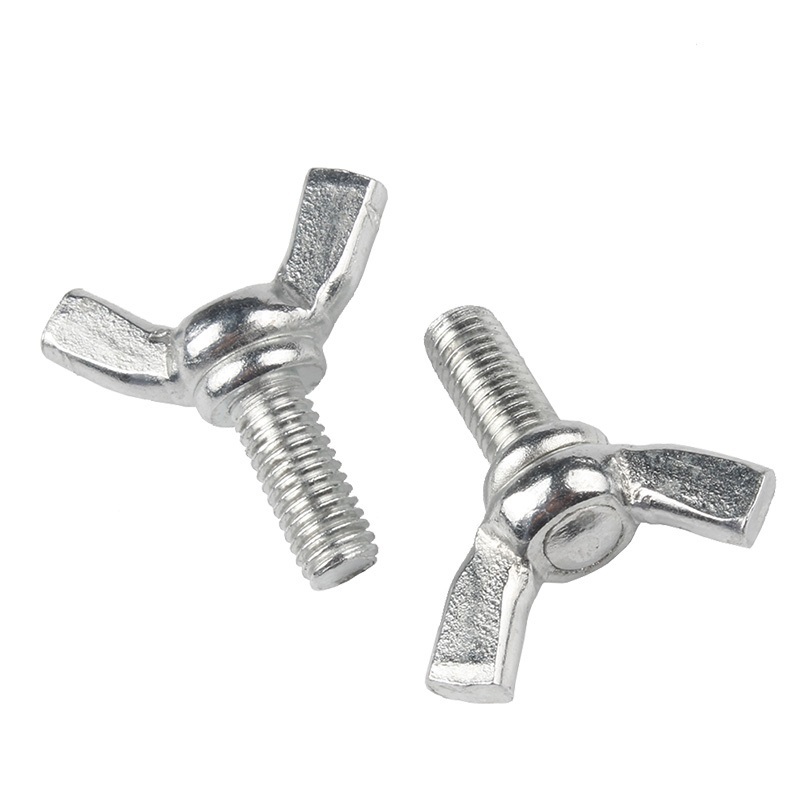

High Strength Grade 4.8 8.8 10.9 12.9 Galvanized White Blue Zinc Plated DIN316 Butterfly Wing Bolts
Key words：
High Strength Grade 4.8 8.8 10.9 12.9 Galvanized White Blue Zinc Plated DIN316 Butterfly Wing Bolts
Email us：wang15188881444@gmail.com
Related Products
Product Details
Product Photos and Information
| Name | Wing bolts | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO UNC BSW JIS etc. | Strength level | 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80 |
| Size | M3-M50 | Surface finish | ZP\HDG\BLACK\Dacromet etc. |
| Length | 15-500 | Samples | Available |
|
|
Product Standards
Wing Bolts Thumb screws DIN 316
| Thread size | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | |
| d | ||||||||||
| P | pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 |
| dk | maximum value | 8 | 11 | 13 | 16 | 20 | twenty three | 29 | 35 | 44 |
| minimum | 6 | 8 | 10 | 13 | 17 | 20 | 26 | 32 | 41 | |
| d 3 | maximum value | 7 | 9 | 11 | 12.5 | 16.5 | 19.5 | twenty three | 29 | 37.5 |
| minimum | 5.5 | 7.5 | 9 | 10.5 | 14.5 | 17.5 | twenty one | 27 | 35 | |
| n | maximum value | 20 | 26 | 33 | 39 | 51 | 65 | 73 | 90 | 110 |
| minimum | 18 | twenty four | 30 | 36 | 48 | 62 | 70 | 86 | 106 | |
| h 1 | maximum value | 1.9 | 2.3 | 2.3 | 2.8 | 4.4 | 4.9 | 6.4 | 6.9 | 9.4 |
| minimum | 1.1 | 1.5 | 1.5 | 2 | 3.6 | 4.1 | 5.6 | 6.1 | 8.6 | |
| h 2 | maximum value | 2.3 | 2.8 | 3.3 | 4.4 | 5.4 | 6.4 | 7.5 | 8 | 10.5 |
| minimum | 1.7 | 2.3 | 2.7 | 3.6 | 4.6 | 5.6 | 6.5 | 7 | 9.5 | |
| H | maximum value | 10.5 | 13 | 17 | 20 | 25 | 33.5 | 37.5 | 46.5 | 56.5 |
| minimum | 8.5 | 11 | 15 | 18 | twenty three | 31 | 35 | 44 | 53.5 | |
| k | maximum value | 4.6 | 6.5 | 8 | 10 | 12 | 14 | 17 | twenty one | 25 |
| minimum | 3.2 | 4 | 5 | 6.5 | 8 | 10 | 13 | 16 | 20 | |
About Us
We are committed to become the world's top fastening solutions provider, let Chinese product enterworld class, let the Chengyi production become synonymous with quality. To this end we need perseverance. At the same time, we also shoulder the responsibility of the society and the expectations of theemployees. In the future, we will become a respected enterprise.
Certificate
Production Process
Exhibition/Partner Photos
Our export countries include Russia, South Korea, Britain, France, Germany, Italy, Canada, Mexico,Brazil, Argentina, Chile, Australia, Indonesia, Thailand, Singapore, Saudi Arabia, Syria, Egypt, Tanzania,Kenya and other countries. Our products will be spread all over the world!
